應用領域

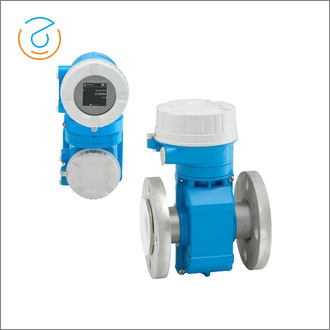

Promag P傳感器是化工行業和過程領域內的腐蝕性液體和高溫液體測量的理想選擇。Promag P 10的軟硬件設計均直觀明了，在保證Endress+Hauser高品質的前提下， 大大簡化了儀表從設計到服務全生命周期內的每一步操作。采用Heartbeat Technology心跳技術，為過程安全保駕護航。
優勢
應用廣泛：多種接液部件材質可選
節能流量測量：無節流部件，無壓損
免維護：無可移動部件
最優操控性：使用移動終端設備，安裝SmartBlue app，直接觸摸屏操作
調試簡單高效：引導式儀表組態預設置和現場設置
帶自校驗功能：采用Heartbeat Technology心跳技術
雙向流量測量，完全不受壓力、密度、溫度和粘度的影響。
化工行業和過程領域內的腐蝕性液體測量的理想選擇。
儀表特點
最大公稱口徑：DN 600 (24")
通過通用防爆認證
PTFE或PFA內襯
支持HART或Modbus RS485系統集成
安裝app，選配顯示單元，操作靈活
規格參數
| 測量原理 | 電磁 |
| 產品標題 | Flowmeter for basic process applications with easy-to-use operation concept. Dedicated to chemical and process applications with corrosive liquids. |
| 傳感器特點 | Diverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts. Nominal diameter: max. DN 600 (24"). All common Ex approvals. Liner made of PTFE or PFA. |
| 變送器特點 | Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology. System integration with HART, Modbus RS485. Flexible operation with app and optional display. |
| 公稱口徑范圍 | DN 15 to 600 (? to 24") |
| 接液部件材質 | Liner: PFA; PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium |
| 測量變量 | Volume flow, conductivity, mass flow |
| 最大測量誤差 | Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s) |
| 測量范圍 | 4 dm3/min to 9600 m3/h (1 gal/min to 44 000 gal/min) |
| 最大過程壓力 | PN 40, Class 300, 20K |
| 介質溫度范圍 | Liner material PFA: –20 to +150 °C (–4 to +302 °F) Liner material PTFE: –40 to +130 °C (–40 to +266 °F) |
| 環境溫度范圍 | Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F) |
| 傳感器外殼材質 | DN 15 to 300 (? to 12""): AlSi10Mg, coated DN 350 to 600 (14 to 24""): Carbon steel with protective varnish |
| 變送器外殼材質 | AlSi10Mg, coated |
| 防護等級 | Standard: IP66/67, Type 4X enclosure |
| 顯示/操作 | 2.4" LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible |
| 輸出 | 4-20 mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20 mA |
| 數字通信 | HART, MODBUS RS485 |
| 電源 | DC 24 V AC 100 to 230 V AC 100 to 230 V / DC 24 V (non-hazardous area) |
| 防爆認證 | ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, KC, JPN, UK Ex |
| 計量認證和證書 | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Heartbeat Technology complies with the requirements for measureme |
